Bandningsmaskin

Cyklob XZE-3111- GL 2020 pallet conveyin

Build in 2004

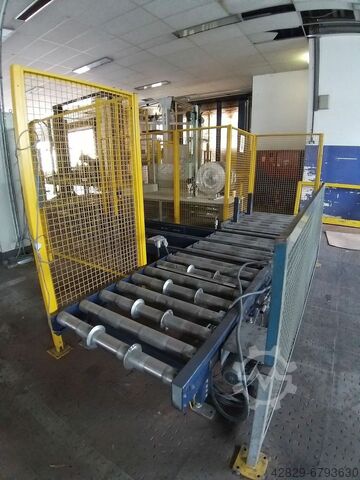

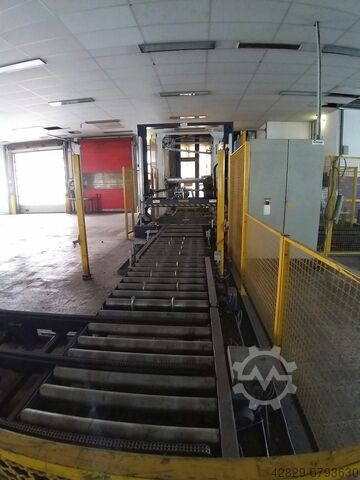

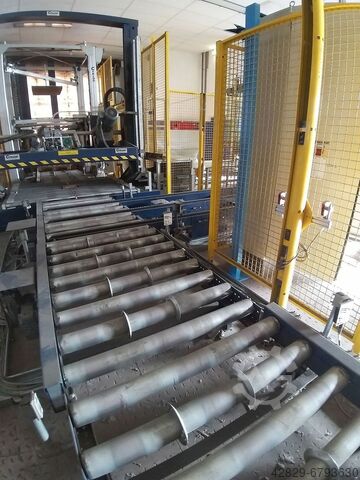

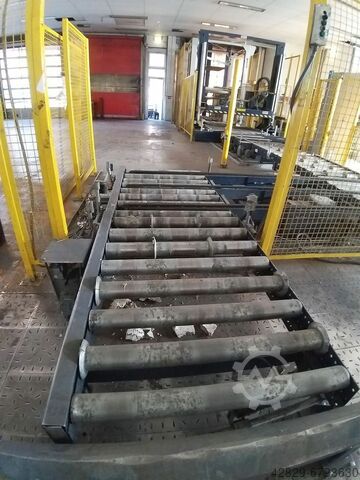

Description/configuration: Complete line for automatic pallet strapping, automatic stretch-wrapping of pallets. Includes fully automated pallet conveying. Line with ""straight""-configuration, built with chain conveyors and configured as follows:
> Straight chain conveyor, motorized, travel is long side leading, l~1100 mm, REF 25778.01

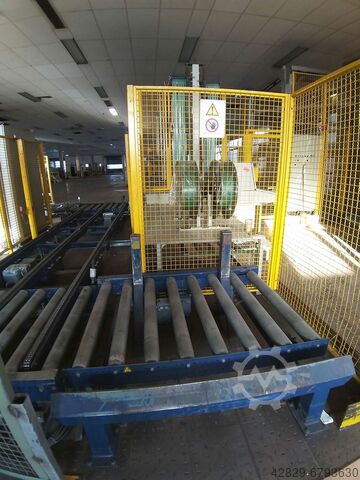

> pallet strapper Cyklop XZE-3111, REF 25778.30
> Straight chain conveyor, motorized, travel is long side leading, l~1100 mm, REF 25778.02
> Straight chain conveyor underneath wrapper, motorized, travel is long side leading, l~2600 mm, REF 25778.03
> ring style pallet film wrapper Cyklop GL 2000, REF 25778.40
> Straight chain conveyor, motorized, travel is long side leading, l~1100 mm, REF 25778.04
> Straight chain conveyor, motorized, travel is long side leading, l~1100 mm, REF 25778.04"
Layout available
max speed in pallets/h: 50 pallets/h
Chain conveyor
Pallet width of up to 800 mm
Pallet length of up to 1200 mm
max height full pallet (max passage height): ~1700 mm
Height of pallet conveying (min=300mm): ~400 mm
max weight full pallet: ~1500 kg
Over all length equipment: ~8000 mm
Over all width equipment: ~6000 mm
Over all height equipment: ~3500 mm
Nwedpfx Ajhrmlksbyjn
Input Power: ~15 kw (whole line)
Voltage: 400 V, 3 Ph, 50 Hz
Air requirement: 6 bar
Equipment at central warehouse Helmstedt with nearest airports: Hannover (~1,5 hrs), Leipzig (~2hrs), Berlin (~2,5 hrs)
Condition: cleaned & in working conditions

Machine available: upon request
