Center Hole Grinding Machine

Technica Zentroflex 14-SA-110 (CNC Control)

Workpiece Clamping Diameter : ø 3 – 140 mm (Optional ø 210 mm)
Workpiece Diameter : ø 3 – 310 mm
Workpiece Length : 50 – 1.100 mm
Centre Hole Diameter : ø 1 – 60 mm (Optional ø 100 mm)
Workpiece Weight : max. 170 kg (Optional 1,000 kg)
Center Hole Angle : 60 °
Accuracy : < 1 µm (Submicron accuracy)
Spindle Speed : 5.000 – 45.000 rpm

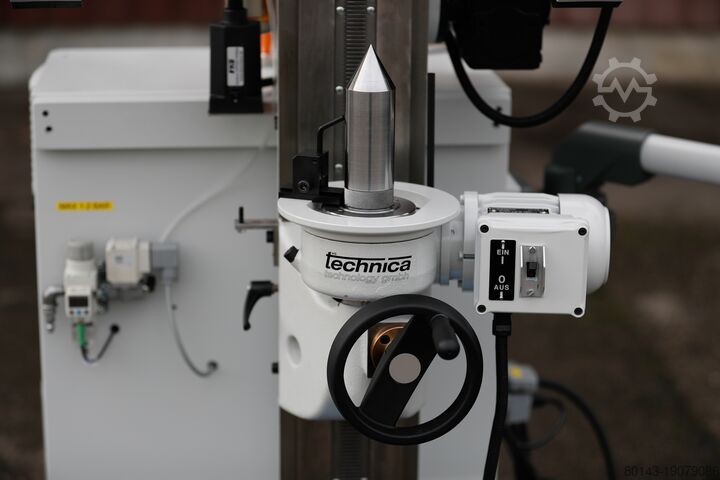

Grinding Cone Movements : 3+1
Rotation
Orbital rotation
Stroke movement
+1 Workpeice rotation
Quirlig Grinding Technique : Included (Cross-hatched grinding pattern)
Grinding Process : Semi-Automatic, CNC
Dsdpfewhi Srex Abyskw

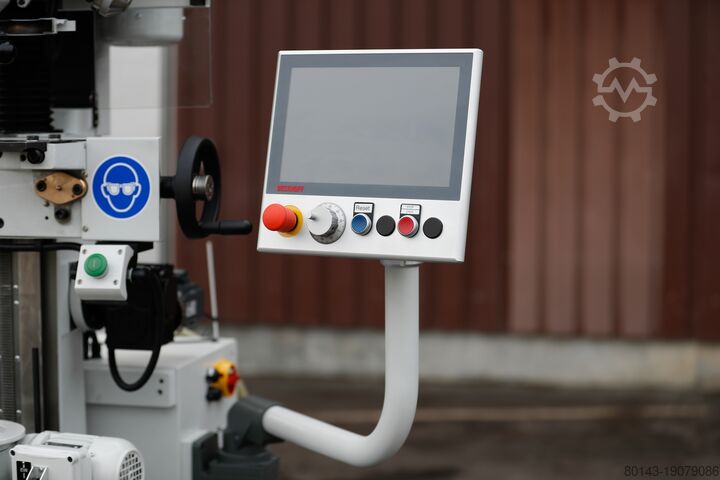

Control Panel : Beckhoff
CNC Movements : Z-Axis
Indurstry 4.0 Compatibility : Available
Semi-Auto Grinding Cone Dressing : Included
Workpiece Rotation : Available (as a option)

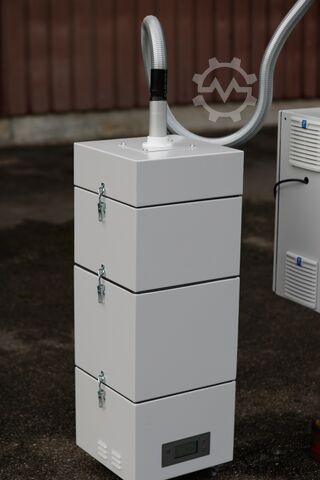

Dust Extraction And Filtration : Available (as a option)
Sectors : Precision Grinding, Aviation, Automotive, Machinery etc.

Benefits:
Sub-micron Precision: Achieve sub-micron (< 1 µm) precision in grinding thanks to Swiss engineering and a robust machine design.

Sustainable Reliability: Ensure reliable and sustainable processing.

Cost Efficiency & High Productivity: Benefit from lower production costs and high productivity due to a short grinding process and reduced production times for subsequent processes (cylindrical grinding).

Quirlig Grinding Technique: Experience an optimized grinding process with the Quirlig Grinding Technique. Properly ground center holes that have cross-hatched grinding pattern. The cross-hatched grinding pattern ensures that oil is retained when the workpiece is placed between the centers during the cylindrical grinding process, creating a micro oil layer. The micro oil layer prevents unwanted "dry running" during cylindrical grinding.

Easy to Use CNC Control Panel: Benefit from very simple operation and grinding program recording with the Beckhoff control panel and Z-axis servo movement.

Industry 4.0: Fully compatible with Industry 4.0 applications, thanks to the Beckhoff control panel.

Low Maintenance Costs: Enjoy low maintenance costs throughout the machine's service life, thanks to Swiss-quality construction.

The Zentroflex SA-series center hole grinding machines are designed to deliver high-precision cylindrical grinding in the aviation, automotive, and machinery sectors. Additionally, the Zentroflex SA-series is the ideal solution for recovering parts distorted after heat treatment or for reducing cylindrical grinding costs.

Z-Axis movement is provided by servo motor in CNC form. The part is loaded-unloaded and clamped manually. Settings are made from CNC control panel and grinding is started by pressing the start button. No other manual setting or control is made during grinding.
